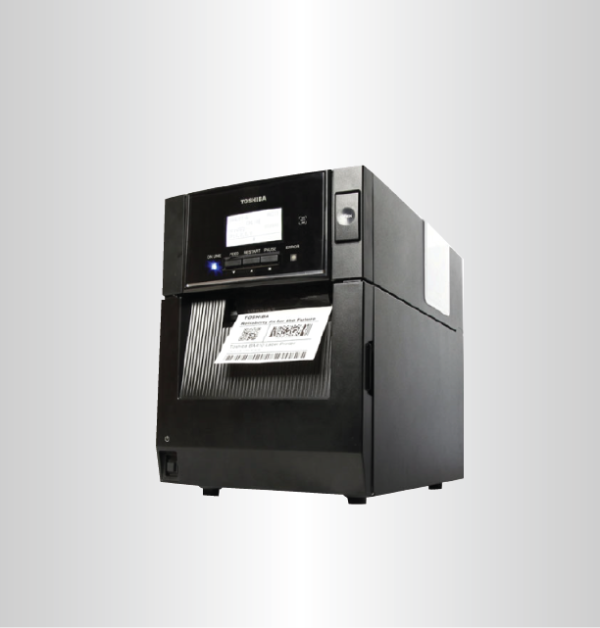

BA410T-TS

Categories: , ,

Description

The Toshiba BA410T with its entirely new software platform ensures it will keep pace even with the latest technology standards and requirements. Thanks to future-proof options and a broad set of features, the BA410T offers solutions that are usually reserved for industrial printers only.

-Extensible OS architecture fit for future trends
-Improved productivity thanks to increased print speed with superior print quality
-Outstanding reliability and robustness to eliminate almost any downtime
-Easy to use high performance printer suitable for versatile environments
-Wide range of features and options to adapt to ever-changing workplaces
-SOTI Connect certified for IoT device management

Specifications

General Information
Printing Technology Thermal transfer, direct thermal
Thermal Print Head Type Flat head
Memory 128 MB (FROM), 128 MB (SRAM)
Media loading Top opening
User Interface LCD screen (graphic 128 x 64 dots), 2x LED, 3x key
Operator keys Feed, Restart, Pause
Dimensions (W x D x H) 245 x 414 x 333 mm
Weight 15 kg
Duty Cycle 5,000 labels / day
Operating Temperature/Humidity 5°-40°C (41°-104°F) / 25-85% non-condensing relative humidity (RH)
Storage Temperature/Humidity -40°-60°C (-40°-140°F) / 10-90% non-condensing relative humidity (RH)
Power Supply AC 100-240 V, 50/60 Hz
Duty Cycle 5,000 labels / day
Print Information
Sensor Reflective, transmissive
Resolution 203 dpi, 300 dpi
Print Speed Up to 8 ips (203.2 mm/sec)
Print width GS12: Max. 104 mm (4.09 inches), TS12: Max. 105.7 mm (4.16 inches)
Print length Max. 1,498 mm
Barcodes UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, POSTNET, RM4SCC, KIX Code, Customer Barcode, GS1 DataBar
2D Codes Data Matrix, PDF 417, MaxiCode, QR Code, Micro PDF 417, CP Code, Aztec, GS1 Data Matrix, Micro QR Code
Fonts Bitmap font, outline font, price font, TTF, OTF, writable characters
Ribbon Information
Ribbon width 60 – 110 mm
Ribbon Core Size 25.4 mm (1 inch)
Ribbon Core Width Fixed 118 mm
Max Ribbon Length 450 m
Max ribbon roll diameter 75 mm
Media Information
Core diameter 38 mm, 40 mm, 42 mm, 76.2 mm
Max outer roller diameter 200 mm
Media type Vellum paper and labels, matt coated paper, glossy coated paper, synthetic film, PET film, polyimide
Media Format Roll, fanfold
Alignment Centred
Media width Direct thermal: 22 – 118 mm, Thermal transfer: 22 – 114 mm
Media thickness Direct thermal: 0.08 – 0.17 mm, Thermal transfer: 0.1 – 0.17 mm
SOFTWARE & CONNECTIVITY Information
Emulation ZPL II, SBPL, DPL, EPL, IPL
Printer Drivers Windows 10/8.1/8/7 (32/64 bit), Windows Server 2016, Windows Server 2012 R2/Server 2012/Server 2008 R2, Linux, SAP
SDK iOS, Android, Windows, Java
Interface USB 2.0 HS, Ethernet 10/100 Base T (IPv4 & IPv6), Bluetooth V2.1 EDR with MFi certified, NFC (for Bluetooth pairing), WLAN 802.11a/b/g/n (dual band for 2.4 GHz/5 GHz)*, parallel port*, serial port*, expansion I/O*
Language mode TPCL, Basic Command Interpreter (BCI)
Label Software BarTender UltraLite (co-packed)
IoT Device Management SOTI Connect
