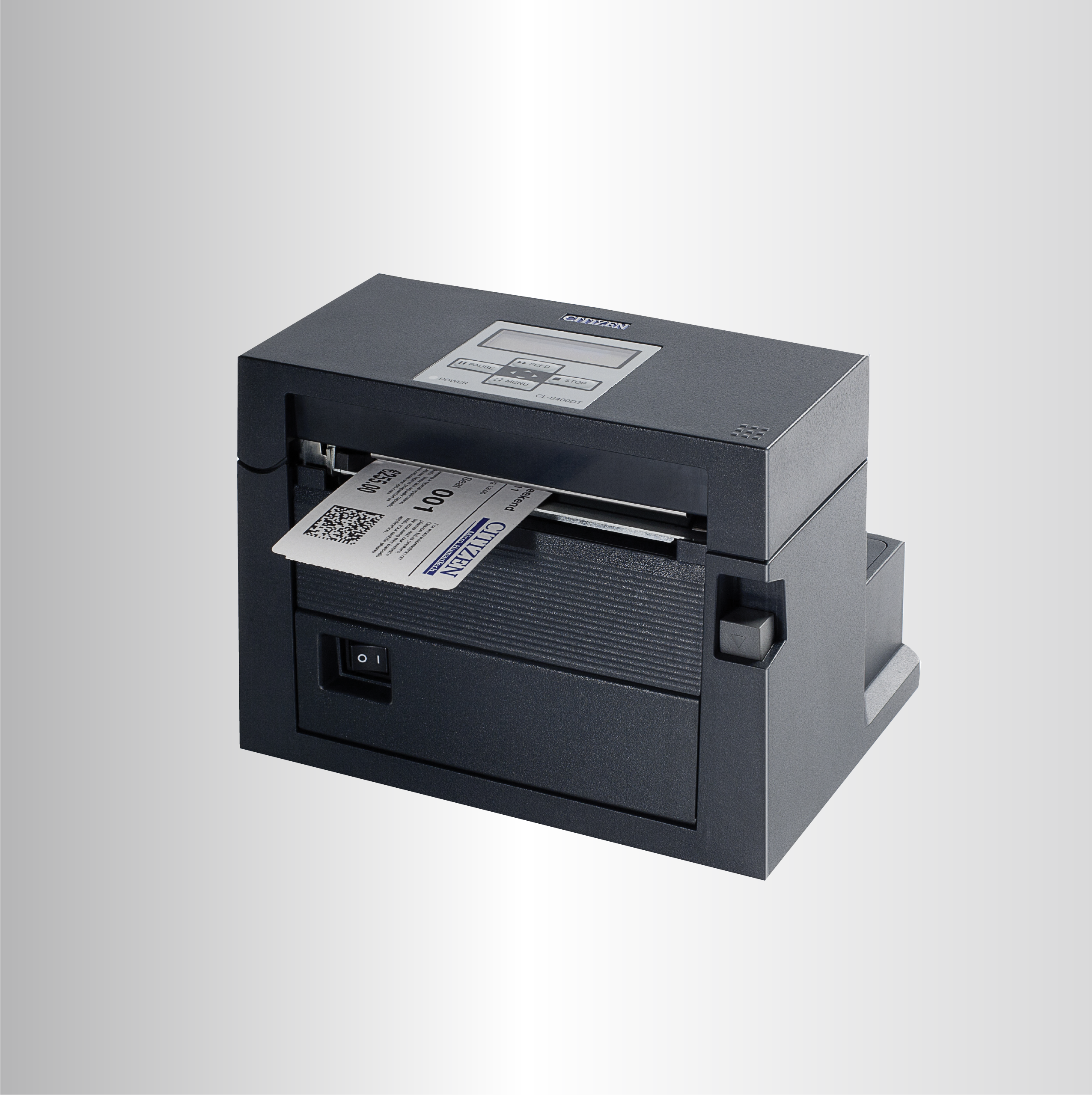

CL-S400DT

Categories: ,

Description

The CL-S400DT is designed to provide simple, cost-effective, high quality label printing on a range of media, making it particularly suitable for producing boarding passes, swing tags, festival and concert tickets. Meanwhile, the ENERGY STAR® rating of the CL-S400DT printer ensures that your printing process is always energy efficient and eco-friendly.

– Sleep and standby functions for energy efficiency
– Can accommodate extra size and thickness fanfold card paper media.
– Print speeds of up to six inches per second.

Specifications

Printing Technology: Direct Thermal
Resolution:
  • 203 dpi
Print Speed (maximum):
  • 6 inches per second (150 mm/s)
Print Width (maximum): 4 inches (104 mm)
Media type: Roll or fanfold media; die-cut, continuous or perforated labels, tags, tickets. Inside or outside wound
Media Width (min to max): 0.5 – 4.6 inches (12.5 – 118 mm)
Media Thickness (min to max): 63.5 to 254 µm
Media Length (min to max): 0.25 to 32 inches (6.35 to 812.8 mm)
Roll Size (max), Core Size: Inside diameter 5 inches (125 mm) External diameter 8 inches (200mm) Core size 1 inch (25mm)
Mechanism: Hi-Lift™ metal mechanism with wide opening head
Media Sensor: Fully adjustable gap, notch and reflective black mark
Main Interface: Dual Interface Serial (RS-232C), USB (version 2.0, full speed)
Optional interfaces:
  • Wireless LAN 802.11b and 802.11g standards, 100 metres, 64/128 bit WEP, WPA, up to 54Mbps
  • Ethernet (10/100 BaseT)
  • Parallel (IEEE 1284 compliant)
Case: Hi-Open™ industrial ABS case with safe close
Control panel: 4 buttons, 16×2 LCD with 2-colour backlight and sophisticated menu configuration system
Flash (Non-Volatile Memory): 8 MB total, 1 MB available for user
RAM (standard Memory): 16 MB total, 1 MB available for user
Drivers and software: Free-of-charge from website, including support for various platforms
Emulations (Languages):
  • Datamax® DMX
  • Cross-Emulation™ – autoswitch between Zebra® and Datamax® emulations
  • Zebra® ZPL2®
  • CBI™ BASIC Interpreter
  • Eltron® EPL2®
Size (W x D x H) and Weight:
  • 206 x 149 x 150mm, 2.68 Kg (excluding roll holder)
Cutter: Guillotine type, Dealer Installable
Number of Cuts: 300,000 cuts on media 0.06-0.15mm; 100,000 cuts 0.15-0.25mm

Accessories (Options)

Download Brochure
