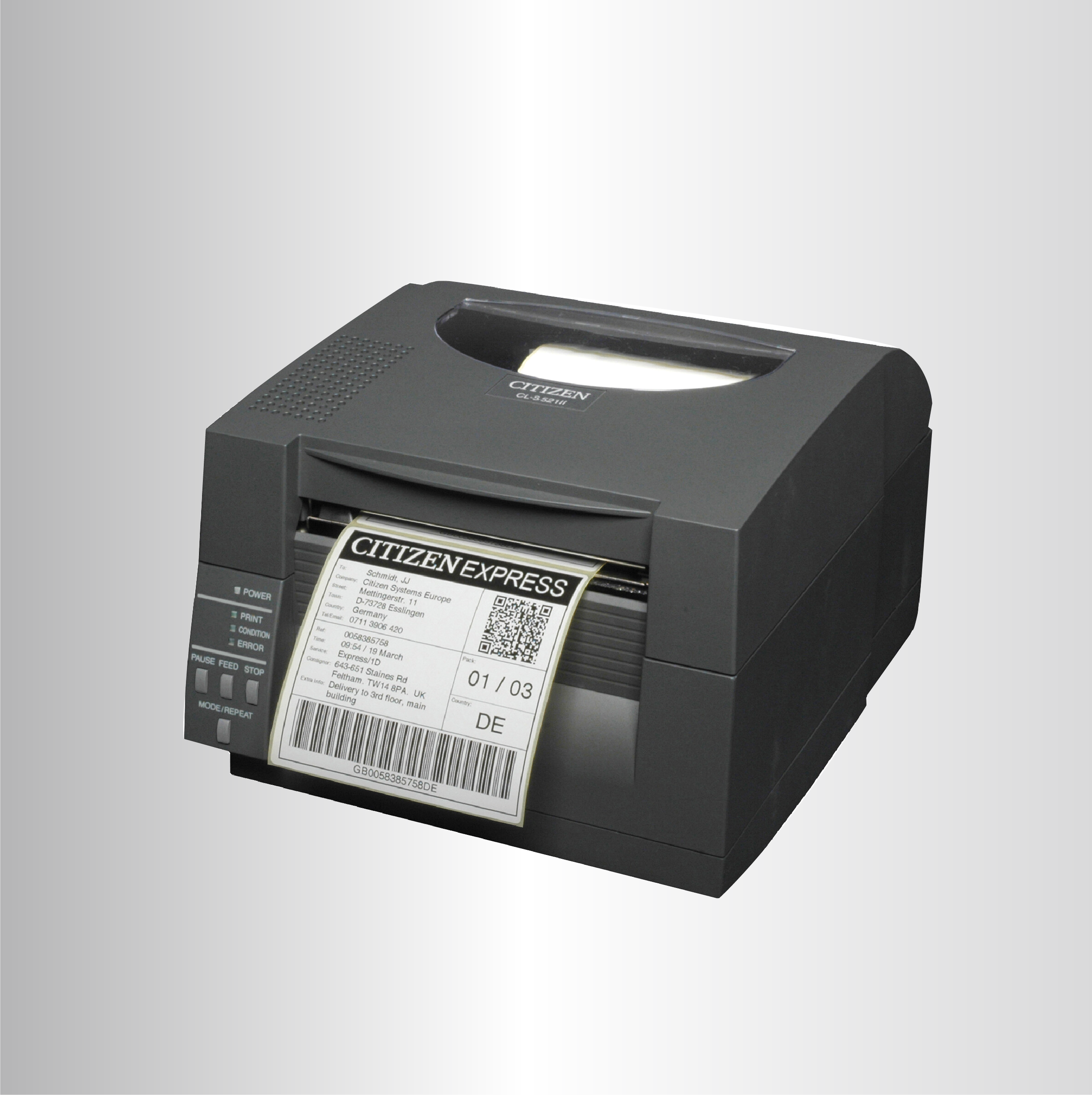

CL-S521II/531II

Categories: ,

Description

The CL-S521II offers a reliable, easily integrated industrial desktop printing solution. These units are supplied as standard with on-board ZPL® and Datamax® emulations plus BASIC Interpreter programming support, offering maximum flexibility and easy compatibility with other applications.

– Handles a range of media types, including specialised labels and wristbands.

– Powerful on-board 32 bit processor for fast output

– 32Mb of RAM and 16Mb of flash

Specifications

Printing Technology: Direct Thermal
Resolution:
  • 203 dpi
Print Speed (maximum):
  • 6 inches per second (150 mm/s)
Print Width (maximum): 4 inches (104 mm)
Media Width (min to max): 0.5 – 4.6 inches (12.5 – 118 mm)
Media Thickness (min to max): 63.5 to 254 µm
Media Length (min to max): 0.25 to 99.99 inches (6.35 to 2539.74mm)
Roll Size (max), Core Size: Inside diameter 5 inches (125 mm) External diameter 8 inches (200mm) Core size 1 inch (25mm)
Mechanism: Hi-Lift™ metal mechanism with wide opening head
Media Sensor: Fully adjustable gap, notch and reflective black mark
Main Interface: Dual Interface Serial (RS-232C), USB (version 2.0, full speed)
Optional interfaces:
  • Wireless LAN 802.11b and 802.11g standards, 100 metres, 64/128 bit WEP, WPA, up to 54Mbps
  • Ethernet (10/100 BaseT)
  • Parallel (IEEE 1284 compliant)
Case: Hi-Open™ industrial ABS case with safe close
Control panel: 4 buttons and 4 LEDs
Flash (Non-Volatile Memory): 16 MB total, 4MB available for user
RAM (standard Memory): 32MB total, 8MB available for user
Drivers and software: Free-of-charge from website, including support for various platforms
Emulations (Languages):
  • Datamax® DMX
  • Cross-Emulation™ – autoswitch between Zebra® and Datamax® emulations
  • Zebra® ZPL2®
  • CBI™ BASIC Interpreter
  • Eltron® EPL2®
Size (W x D x H) and Weight:
  • 231 x 289 x 183mm, 3.6 Kg
Warranty: 2 years on printer. 6 months or 30 Kms on printhead
Cutter: Guillotine type, Dealer Installable

Accessories (Options)
