CS-60

Description

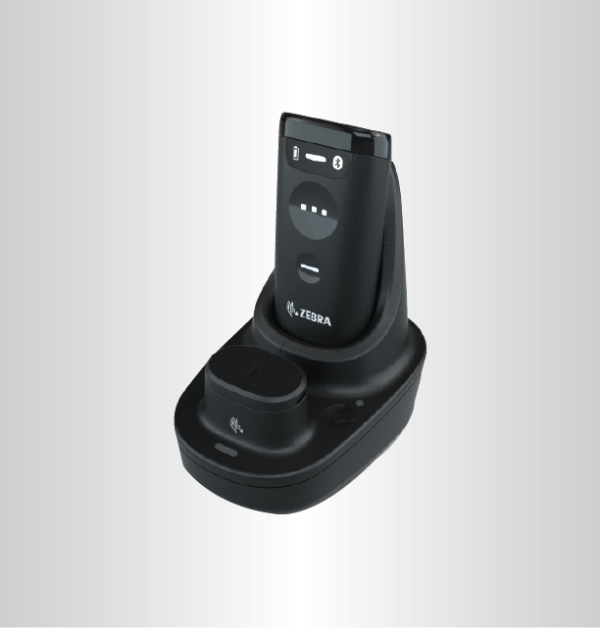

Do you need a cordless scanner for inventory in the store aisles and a corded hands-free scanner at checkout? What if you didn’t have to deploy different scanners for different tasks? Introducing the CS60 Series Companion Scanner, featuring a groundbreaking design that easily converts between corded and cordless operation, handheld and hands-free, as your needs change. As a cordless scanner, the CS60 is small enough to tuck in a pocket and offers the latest mobile technology including contactless charging. As a corded scanner, the CS60 offers compact scanning for the checkout counter, self-service kiosk and more. Whether you purchase a corded or cordless model up front, you can change modes at any time for superior investment protection. And you get Zebra’s industry-leading scanning performance and our unique DataCapture DNATM industry-preferred management tools that make it easier than ever to integrate, deploy and manage your scanners.

Specifications

Specifications

Physical Characteristics

Dimensions Scanner
0.9 in. H x 1.8 in. W x 4.3 in. D
2.3 cm H x 4.6 cm W x 10.9 cm D
Standard Cradle
4.5 in. H x 3.1 in. W x 4.2 in. D
11.3 cm H x 7.8 cm W x 10.7 cm D
Weight Corded CS60: 2.0 oz. / 56.0 g
Cordless CS60: 2.9 oz. / 83.0 g
Standard Cradle: 4.9 oz. / 138.0 g
Input Voltage Range Scanner and standard cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
Current Operating current at nominal voltage (5.0V): 400 mA (typical)
Standby current (idle) at nominal voltage (5.0V): 90 mA (typical)
Standard Cradle: 450 mA (typical) Standard USB; 600 mA (typical) BC 1.2 USB
Color Midnight black
Supported Host Interfaces USB Certified
Keyboard Support Supports over 90 international keyboards
FIPS Security Certification and TAA Compliance Certified Compliant with FIPS 140-3;
Trade Agreement Act Compliant (specific configuration required)
User Indicators Direct Decode Indicator, Good Decode LEDs, beeper (adjustable tone and volume), haptic feedback on decode, capacitive trigger with haptic and audible feedback, dedicated battery gauge, dedicated Bluetooth LED

Performance Characteristics

Motion Tolerance (handheld) Up to 20 in. / 51 cm per second for 13 mil UPC in optimized mode
Light Source Aiming Pattern: circular 525nm true green LED
Illumination (1) warm white LED
Imager Field of View 45° H x 34° V nominal
Image Sensor 1280 x 960 pixels
Minimum Print Contrast 20% Minimum Reflective Distance
Skew Tolerance +/- 60°
Pitch Tolerance  +/- 60°
Roll Tolerance 0° – 360°
Minimum Element Resolution Code 39 – 5.0 mil

User Environment

Operating Temp. 32° F to 122° F / 0° C to 50° C
Storage Temp. -40° F to 158° F / -40° C to 70° C
Humidity 5% to 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
Tumble Specification Designed to withstand 250 tumbles in 1.5 ft./0.5 m tumbler (1 tumble = 0.5 cycle)
Sealing Scanner: IP65
Electrostatic Discharge (ESD) Scanner and cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light Immunity 0 to 10037 foot candles / 0 to 108,000 Lux

Radio Specifications

Bluetooth Radio Standard Bluetooth Version 5.0 with BLE: Class 1 330ft. (100m) and Class 2 33ft. (10m), Serial Port and HID Profiles
Adjustable Bluetooth Power Output power adjustable down to negative 10 dBm in 8 steps
MFi MFi Certified (specific configuration required)

Battery

Battery Capacity/Type 745 mAh Lithium Polymer battery
Scans Per Battery Charge2 13,000 scans
Operating Time Per Full Charge2 18 hours

Battery Charge Time (from empty)

Standard USB Full Charge: 6 hours
BC1.2 USB Full Charge: 3 hours

Regulatory

Environmental EN 50581:2012
EN IEC 63000:2018
Electrical Safety IEC 62368-1 (Ed.2)
EN 62368-1:2014/AC:2015
LED Safety IEC 62471:2006 (Ed.1.0)
EN 62471:2008 (LED)
EMI/RFI EN 55032:2015/AC:2016 (Class B)
EN 55035:2017
EN 61000-3-2:2014 (Class A)
EN 61000-3-3:2013
47 CFR Part 15, Subpart B, Class B

Accessories

Cordless Accessories Standard cradle, spare battery, 4-slot scanner ShareCradle, 4-slot battery ShareCradle, lanyard, Qi Pad
Corded Accessories Gooseneck Intellistand (weighted and standard), cup, corded USB converter

Symbol Decode Capability4

1D Base 32 (Italian Pharma), Codabar/NW7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI Plessey, UPC/EAN
2D Aztec, Composite Codes, DataMatrix, Dotted DataMatrix, Dotcode, Han Xin, MaxiCode, PDF417, Micro PDF417, Postal Codes, QR Code, Micro QR, TLC-39, SecurPharm
OCR OCR-A, OCR-B, MICR, US Currency

Decode Ranges (Typical)3

Symbology/Resolution Near/Far
Code 39: 5 mil 2.4 in./6.1 cm to 9.5 in./24.1 cm
Code 39: 20 mil 2.5 in./6.4 cm to 26.0 in./66.0 cm
Code 128: 5 mil 2.8 in./7.1 cm to 9.0 in./22.9 cm
PDF 417: 6.7 mil 2.4 in./6.1 cm to 8.0 in./20.3 cm
UPC: 13 mil (100%) 1.8 in./4.6 cm to 19.5 in./49.5 cm
Data Matrix: 10 mil 2.9 in./7.4 cm to 8.0 in./20.3 cm
QR: 20 mil 1.2 in./3.0 cm to 14 in./35.6 cm
